Intel NUC Systems

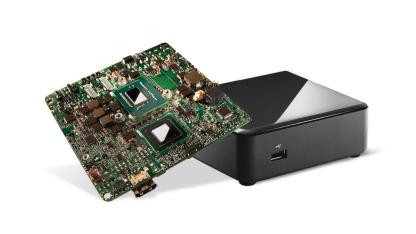

Intel® NUC Kit DCCP847DYE

Product Collection Intel® NUC Kits
End of Life
Launch Date Q1'13
Expected Discontinuance See Roadmap
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor mSATA SSD
# of Internal Drives Supported 1
TDP 17 W
DC Input Voltage Supported 19V
Back-to-BIOS Button No
Board Chipset Mobile Intel® QS77 Express Chipset
Processor Included Intel® Celeron® Processor 847 (2M Cache, 1.10 GHz)
Warranty Period 3 yrs
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 16 GB
Memory Types
DDR3L-1333/1600 1.35V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 25.6 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No
Graphics Specifications
Integrated Graphics ‡ Yes
Graphics Output Dual HDMI
# of Displays Supported ‡ 2
Expansion Options
PCI Express Revision Gen2
PCIe Mini Card Slot (Half Length) 1
PCIe Mini Card Slot (Full Length)
I/O Specifications
USB Revision 2.0
# of USB Ports 5
USB 2.0 Configuration (External + Internal) 3 2
USB 3.0 Configuration (External + Internal) 0 + 0
Total # of SATA Ports 0
Max # of SATA 6.0 Gb/s Ports 0
# of eSATA Ports 0
# of Serial Ports 0
Serial Port via Internal Header

Audio (back channel + front channel) 0 0
Integrated LAN 10/100/1000
Integrated Bluetooth
Consumer Infrared Rx Sensor No
Package Specifications
Max CPU Configuration 1
Package Size 116.6mm x 112.0mm x 39.0mm
Low Halogen Options Available See MDDS
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ No
Intel® vPro™ Technology No
TPM Version None
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Data Protection Technology
Intel® AES New Instructions No
Intel® Platform Protection Technology
Anti-Theft Technology Yes
