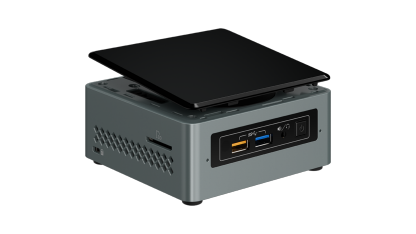

Intel® NUC Kit NUC6CAYS

Essentials
Product Collection	NUC Kits
Status	Launched
Expected Discontinuance	See Roadmap
Socket	Soldered-down BGA
# of Internal Drives Supported	1
Lithography	14 nm
DC Input Voltage Supported	12-19 VDC
Pre-Installed Operating System	Windows 10 Home x64
Warranty Period	3 yrs

Code Name	Products formerly Arches Canyon
Launch Date	Q1'17
Board Form Factor	UCFF (4" x 4")
Internal Drive Form Factor	2.5" Drive
Embedded Storage	32 GB
TDP	10 W
Processor Included	Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz) Warranty Period

Supplemental Information
Embedded Options Available	No
Description	Other features: Includes SDXC card slot, dual microphones

Datasheet

Memory Specifications
Pre-Installed Memory	2 GB
Memory Types	DDR3L-1600/1866 1.35V SO-DIM
Max Memory Bandwidth	14.9 GB/s
ECC Memory Supported ‡	No

Max Memory Size (dependent on memory type)	8 GB
Max # of Memory Channels	2
Max # of DIMMs	2

Graphics Specifications
Integrated Graphics ‡	Yes
# of Displays Supported ‡	2

Graphics Output

VGA (HDB15); HDMI 2.0

Expansion Options
PCI Express Revision	Gen2
Removable Memory Card Slot	SDXC with UHS-I support

PCI Express Configurations ‡	M.2 slot with PCIe x1 lane
M.2 Card Slot (wireless)	22x30

I/O Specifications
USB Revision	2.0, 3.0
USB 2.0 Configuration (External + Internal)	0 + 2
Total # of SATA Ports	1
Audio (back channel + front channel)	7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated Wifi	Intel® Wireless-AC 3168 + BT 4.2
Consumer Infrared Rx Sensor	Yes
Additional Headers	CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL

# of USB Ports	6
USB 3.0 Configuration (External + Internal)	2B 2F + 0
Max # of SATA 6.0 Gb/s Ports	1
Integrated LAN	10/100/1000
Integrated Bluetooth	Yes
S/PDIF Out Connector	TOSLINK

Package Specifications
Low Halogen Options Available	MDDS

Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
TPM	No
Intel® Virtualization Technology (VT-x) ‡	Yes
Intel® Platform Trust Technology (Intel® PTT)	Yes

Intel® vPro Technology ‡	No
Intel® HD Audio Technology	Yes
Intel® Platform Trust Technology (Intel® PTT)	Yes

Intel® Data Protection Technology
Intel® AES New Instructions	Yes
